DIVIDO Line

The  DIVIDO Line  from  SATTRI  is excellent for working with multifilament fibers. These cutting-edge systems are adaptable, well-proven, and field-tested, and are capable of producing high-quality technical multifilaments. The quality of the finished product and energy efficiency are ensured through distinguishing features to meet your needs.



Polyester, Polyamide, Polyolefin, Polyethylene, Biomaterials, and Bi-Component polymers can all be processed with the DIVIDO Line. It is possible to make a large number of filament cross sections. The equipment is set up in accordance with the filament specifications. Versions with High Tension are available.

ontdek de Divido Premo

ontdek de Take-up units




Dus wat kunnen wij u bieden?

Machines, volledig gebouwd en getest op onze locatie.
Plug-and-play-concept, alleen aansluiting van hulpprogramma's nodig voor het opstarten.
Uitgebreide sets verwerkingsparameters die al zijn geprogrammeerd voor alle processen en polymeren.
Robuuste industriële componenten ontworpen voor 24/24, 7/7 toepassingen.
Eenvoudige verzending doordat de machines in standaardcontainermaten passen zonder dat demontage nodig is.
Economisch en flexibel systeem door alleen de benodigde units toe te passen:
  • Met of zonder de DIVIDO Premo (extrusie-spinning) unit.
  • Mogelijkheid om later extra units toe te voegen.

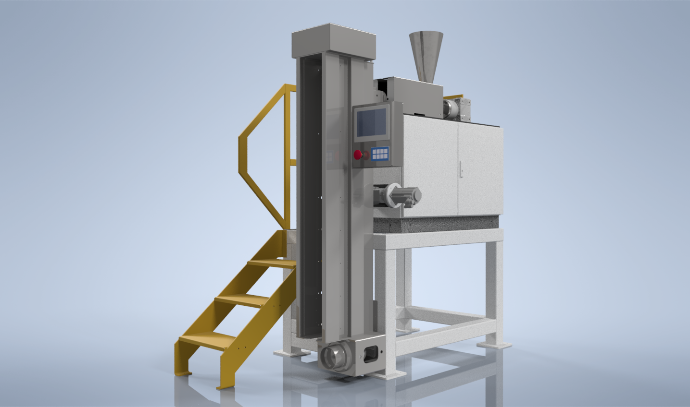

DIVIDO Premo

Extrusion-Spinning Base unit

Stand-alone unit voor extrusiespinnen. Voeding 400VAC 3Ph 32A. Luchtdruk 7 bar 0,3m³ / min. Toevoer gekoeld water (8-12 ° C) 15lt./min.


Extruder

25 mm

Output PP

5.5kg/hr

Output PET

7.5/hr

Spinning Pump

3cc/rev

Polymers

PP, PET, PA6, PBT, PTT, PLA, PE

DIVIDO Take-up units

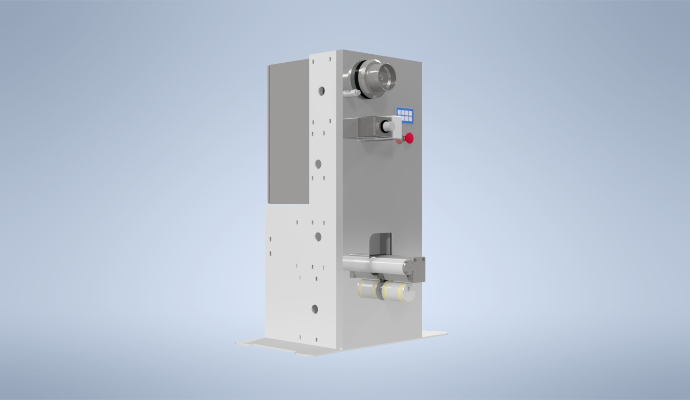

Divido POY.

Stand-alone unit voor POY-productie.
Voeding 230VAC 1Ph 20ALuchtdruk 6 Bar 0,3³ / min.



Denier range

50-500

Denier per Filament

1-7

Speed

850-3200

Filaments

16-180

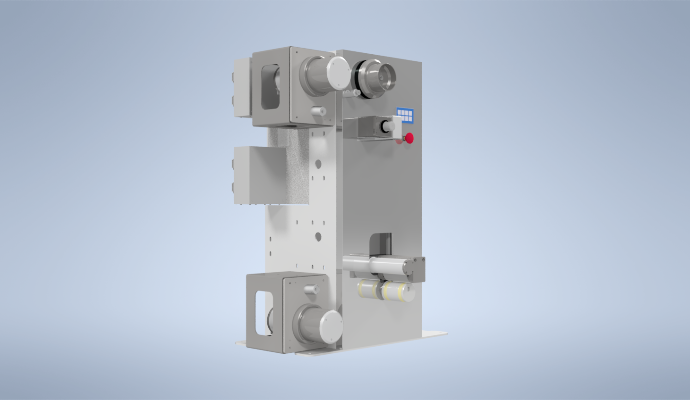

Divido POY-FDY

Stand-alone unit voor POY-FDY-productie.Voeding 400VAC 3Ph 20A.Luchtdruk 7 Bar 1,0³ / min.


Denier range

50-1100

Denier per Filament

1-7

Speed

850-3200

Filaments

16-180

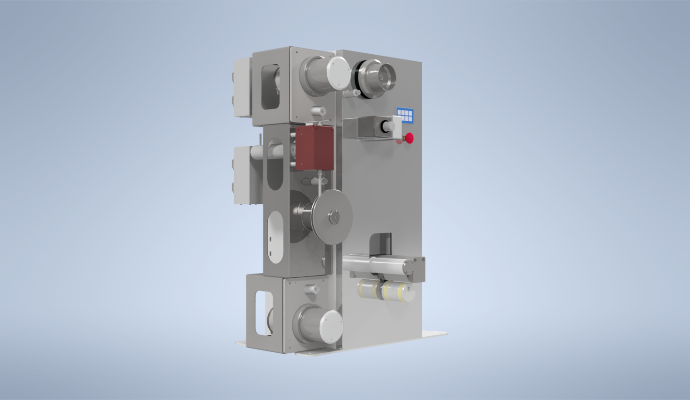

Divido BCF

Stand-alone unit voor BCF-productie.Voeding 400VAC 3Ph 25A.Luchtdruk 7 Bar 2.1³ / min.



Denier range

650-3000

Denier per Filament

7-25

Speed

200-1100

Filaments

40-180

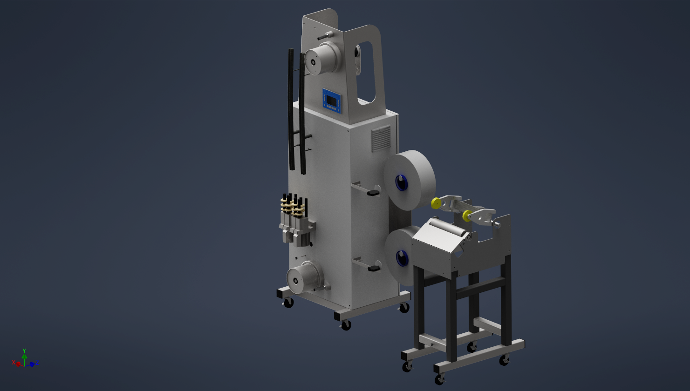

Divido DTY

Stand-alone unit for DTY production.
Power supply 400VAC 3Ph 10A.



Denier range

70-300

Denier per Filament

1-7

Speed

200-1100

Filaments

40-180

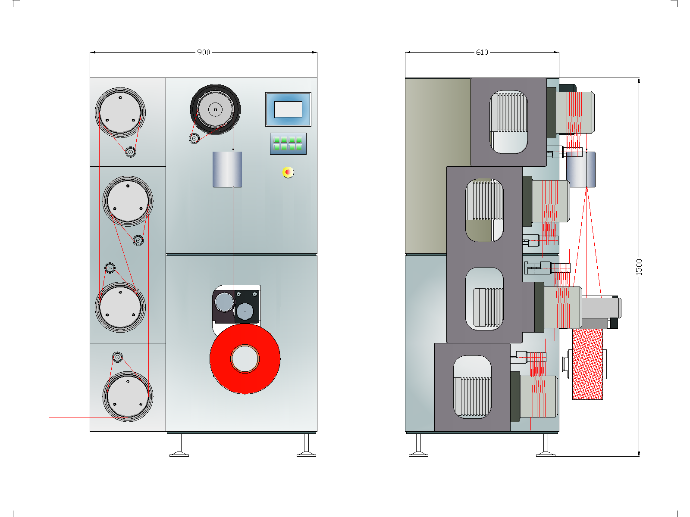

Divido HT

Stand-alone unit voor HT-productie.Voeding 400VAC 3Ph 25A.Luchtdruk 7 Bar 1,2³ / min.



Denier range

100-1100

Denier per Filament

1-10

Speed

300-3200

Filaments

Low-High Speed
