DIVIDO Line
The DIVIDO Line from SATTRI is excellent for working with multifilament fibers. These cutting-edge systems are adaptable, well-proven, and field-tested, and are capable of producing high-quality multifilaments. The quality of the finished product and energy efficiency are ensured through distinguishing features to meet your needs.
Polyester, Polyamide, Polyolefin, Polyethylene, Biomaterials, and Bi-Component polymers can all be processed with the DIVIDO Line. It is possible to make a large number of filament cross sections. The equipment is set up in accordance with the filament specifications. Versions for High Tenacity yarns are available.
So what can we offer you?
- Machines, completely built and tested at our location.
- Plug and play concept, only connection of utilities required for start-up.
- Extensive sets of processing parameters already programmed for all processes and polymers.
- Robust industrial components designed for 24/24, 7/7 applications.
- Easy shipping because the machines fit into standard container sizes without the need for disassembly.
- Economical and flexible system by using only the necessary units:
- With or without the DIVIDO Premo (extrusion-spinning) unit.
- Possibility to add additional units later.
- Possibility to add additional units later.
Extrusion Modules

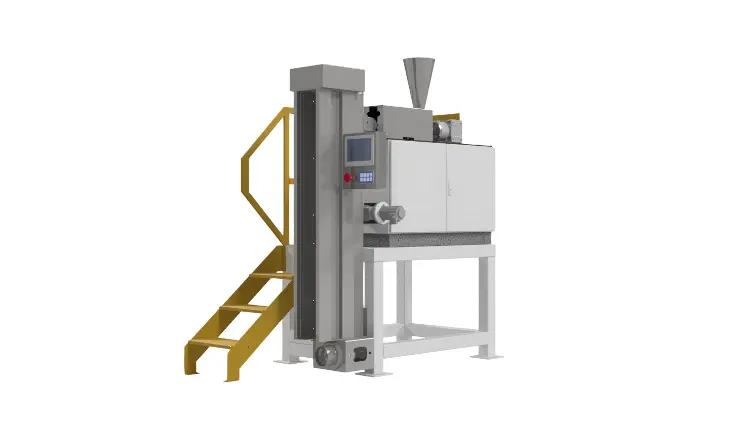

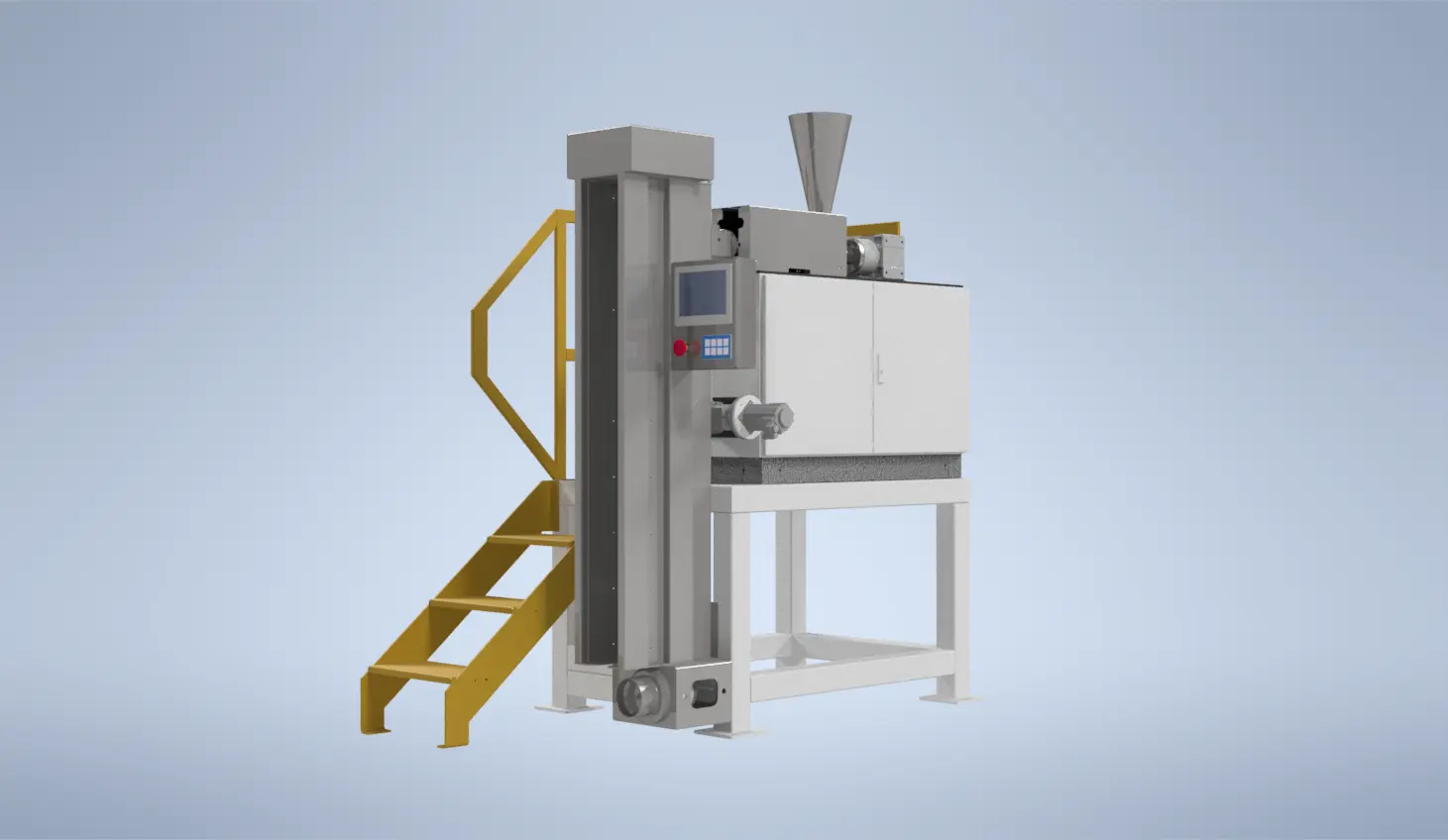

DIVIDO Premo
With or without meltpipe
Stand-alone unit for extrusion spinning. Power supply 400VAC 3Ph 32A. Air pressure 7 bar 0.3m³ / min. Chilled water supply (8-12 ° C) 15lt./min.
Take-up Modules

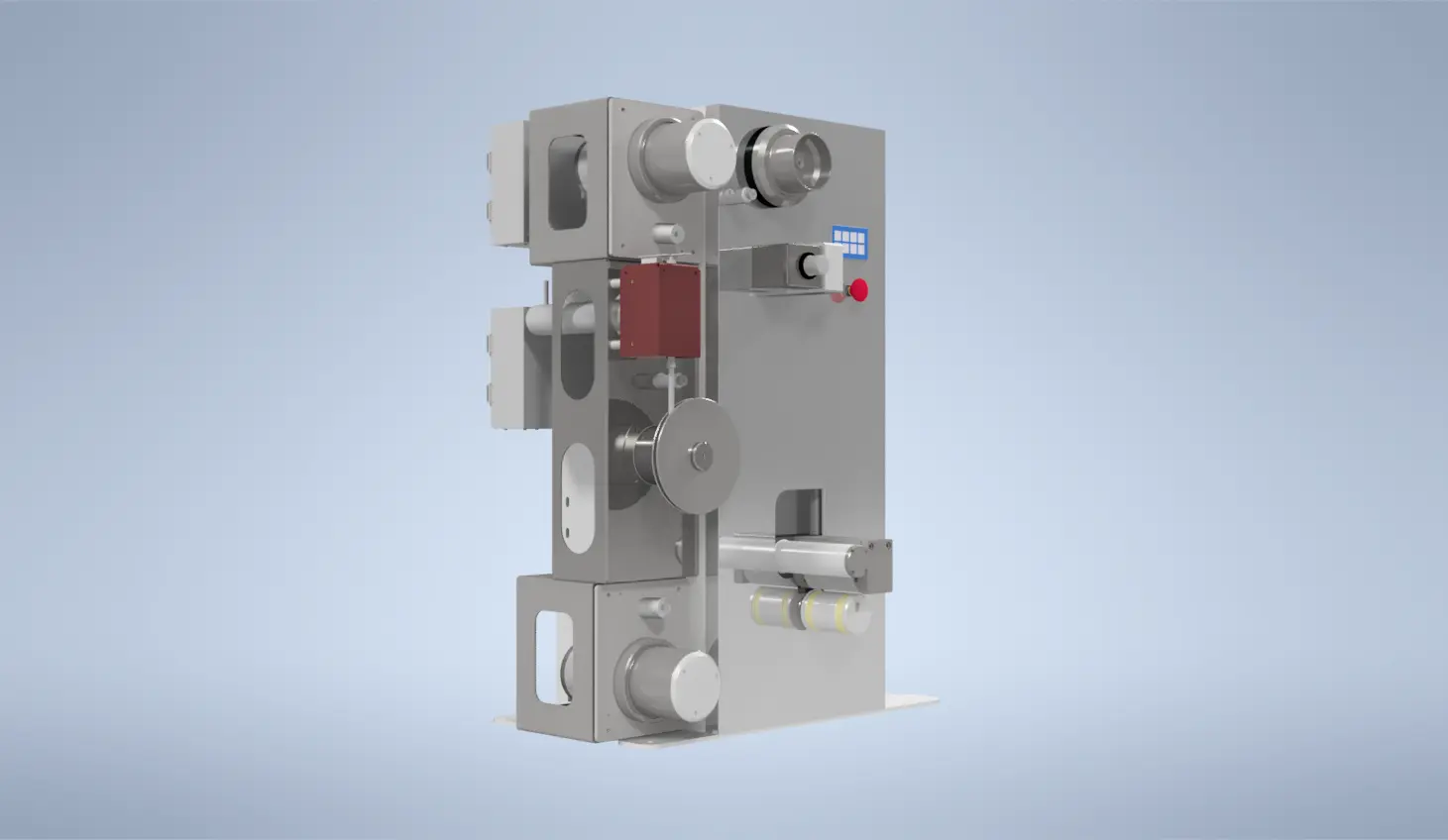

DIVIDO BCF
Stand-alone unit for BCF production. Power supply 400VAC 3Ph 25A. Air pressure 7 Bar 2.1³ / min.

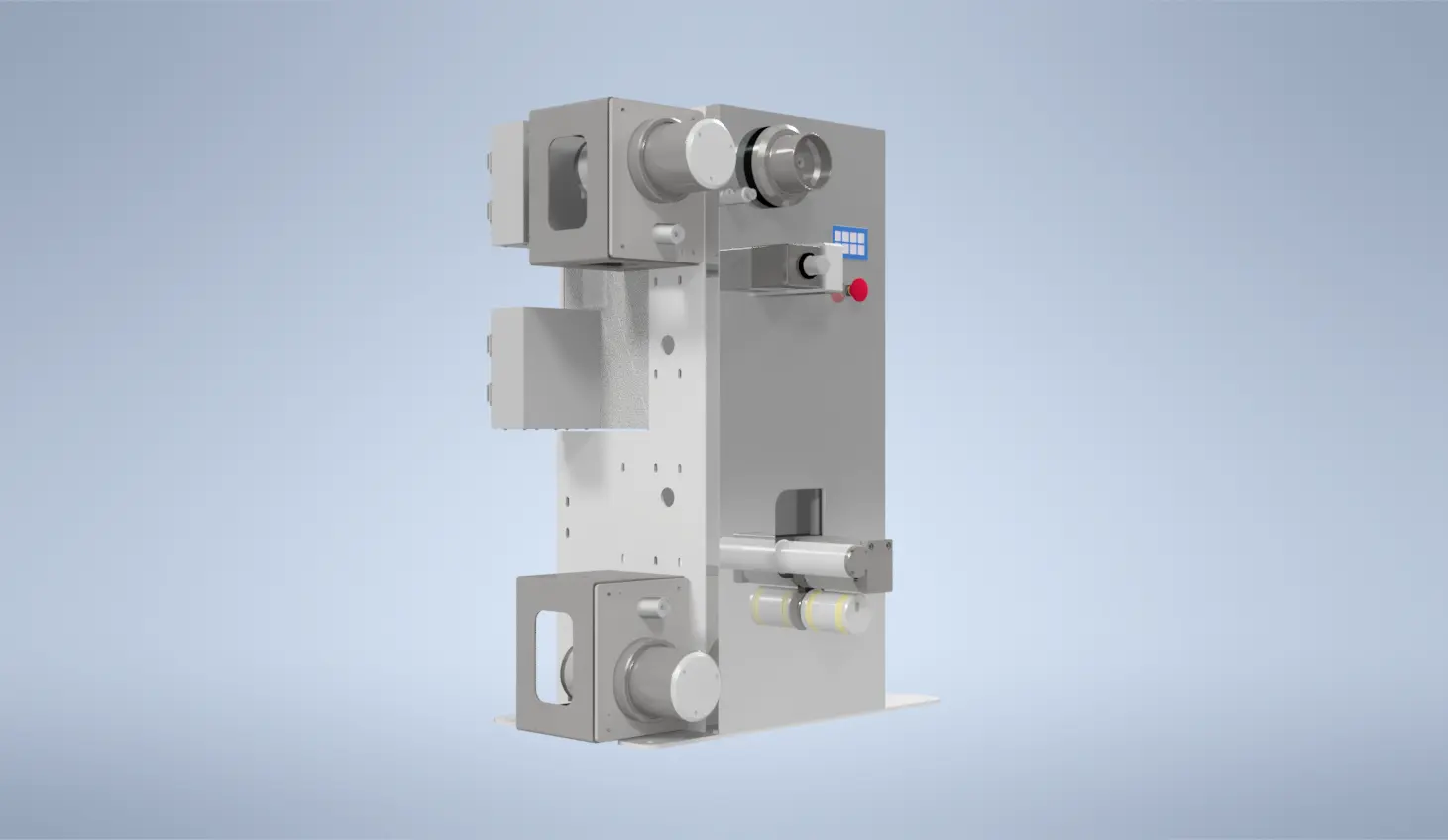

DIVIDO POY-FDY
Stand-alone unit for POY-FDY production. Power supply 400VAC 3Ph 20A. Air pressure 7 Bar 1.0³ / min.

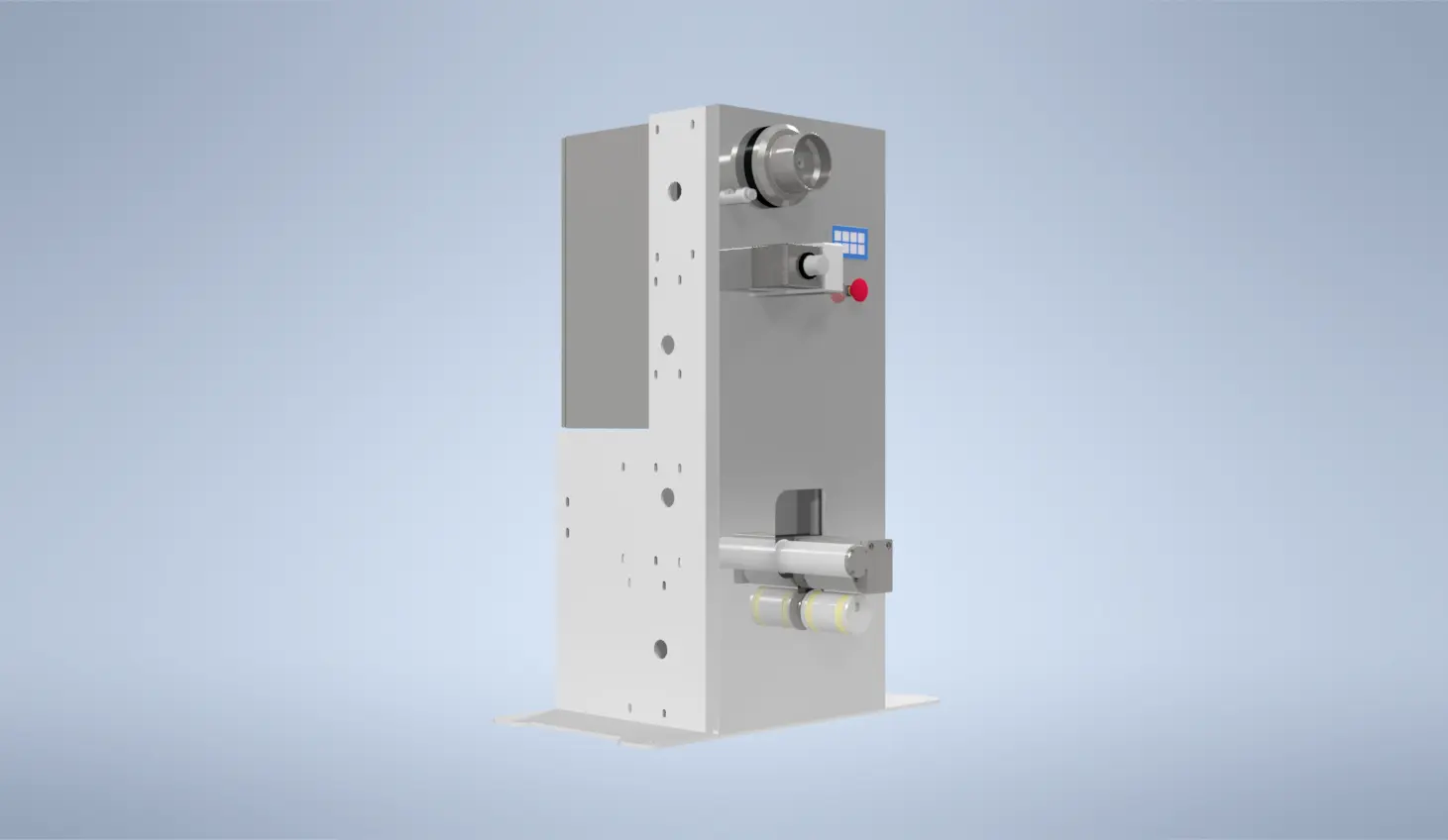

DIVIDO POY
Stand-alone unit for POY production.
Power supply 230VAC 1Ph 20A air pressure 6 Bar 0.3³ / min.

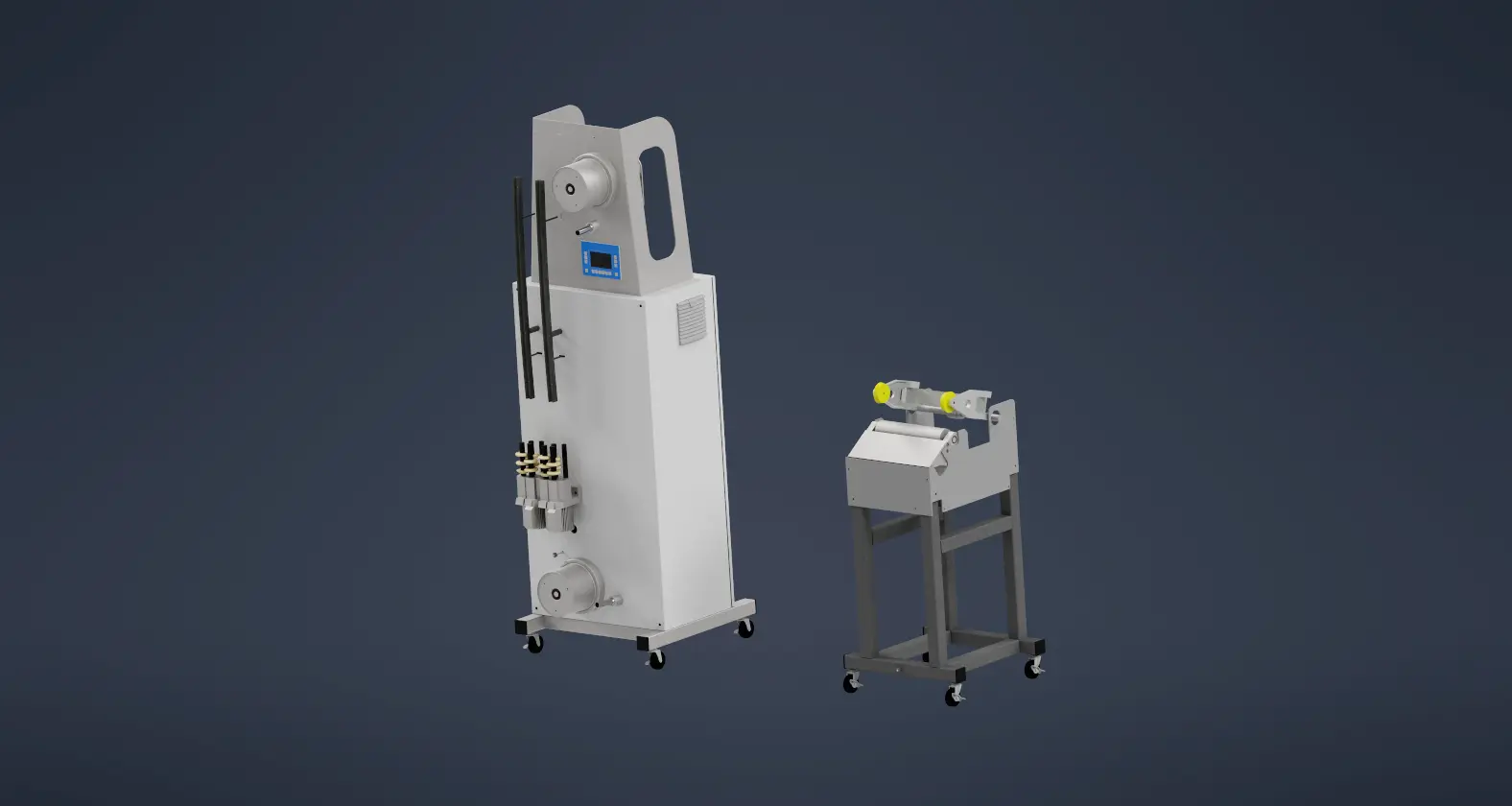

DIVIDO DTY
Stand-alone unit for Friction texturation of POY or FDY tarns
